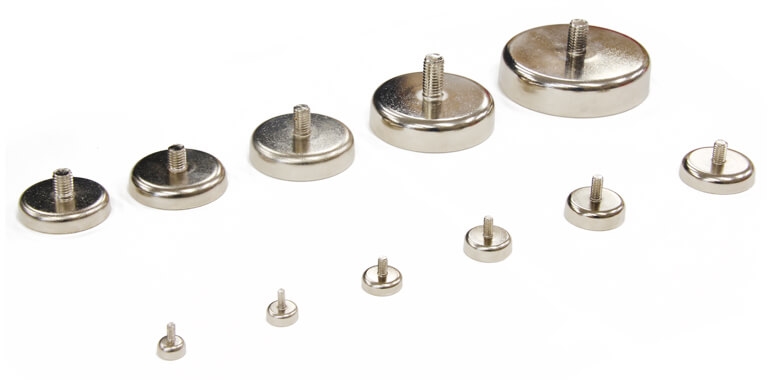

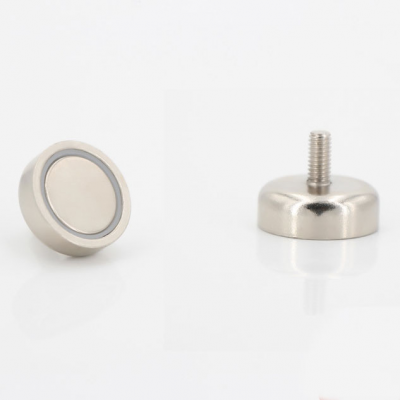

Solid mounting magnet with a male stud attached for bolting to an assembly.
| Code | Product name | D | H | D1 | D2 | N.W. | Screw standard M | Adsorptive power kgf |
|---|---|---|---|---|---|---|---|---|
| C10 | Pot magnet dia. 10 x 12mm, flat with M3 threaded neck | 10 | 12 | 5 | 3.5 | M3 | 2.2 kgf | |
| C12 | Pot magnet dia. 12 x 12mm, flat with M3 threaded neck | 12 | 12 | 5 | 5 | M3 | 3.2 kgf | |
| C16 | Pot magnet dia. 16 x 14mm, flat with M4 threaded neck | 16 | 14 | 5.2 | 9 | M4 | 5.5 kgf | |
| C20 | Pot magnet dia. 20 x 16mm, flat with M4 threaded neck | 20 | 16 | 7.2 | 16 | M4 | 9 kgf | |
| C25 | Pot magnet dia. 25 x 17mm, flat with M4 threaded neck | 25 | 17 | 7.7 | 26 | M4 | 22 kgf | |
| C32 | Pot magnet dia. 32 x 18mm, flat with M6 threaded neck | 32 | 18 | 7.8 | 43 | M6 | 34 kgf | |
| C36 | Pot magnet dia. 36 x 17.6mm, flat with M6 threaded neck | 36 | 17.6 | 7.6 | 54 | M6 | 41 kgf | |
| C42 | Pot magnet dia. 42 x 18.7mm, flat with M6 threaded neck | 42 | 18.7 | 8.8 | 83 | M6 | 68 kgf | |
| C48 | Pot magnet dia. 48 x 24mm, flat with M8 threaded neck | 48 | 24 | 10.8 | 130 | M8 | 81 kgf | |
| C60 | Pot magnet dia. 60 x 31.5mm, flat with M8 threaded neck | 60 | 31.5 | 15 | 256 | M8 | 113 kgf | |
| C75 | Pot magnet dia. 75 x 35mm, flat with M10 threaded neck | 75 | 35 | 17.8 | 510 | M10 | 164 kgf | |
