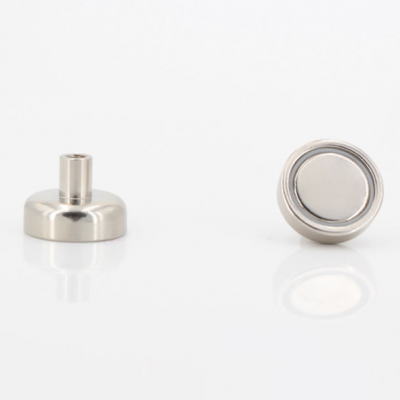

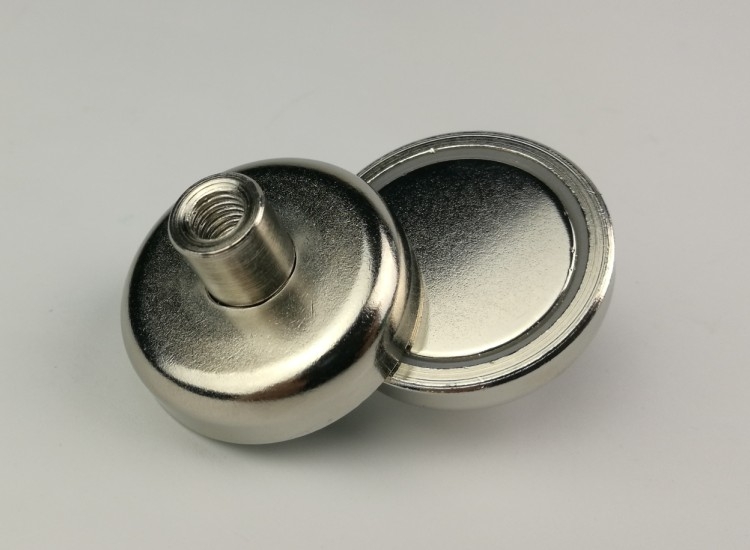

Solid mounting magnet with a female threaded shaft attached.
| Code | Product name | D | H | D1 | D2 | N.W. | Screw standard M | Adsorptive power kgf |
|---|---|---|---|---|---|---|---|---|
| D10 | Pot Cap Neodymium dia. 10 x 12mm / M3 Thread Female | 10 | 12 | 5 | 4 | M3 | 2.2 kgf | |
| D12 | Pot Cap Neodymium dia. 12 x 12mm / M3 Thread Female | 12 | 12 | 5 | 6 | M3 | 3.2 kgf | |
| D16 | Pot Cap Neodymium dia. 16 x 13.5mm / M4 Thread Female | 16 | 13.5 | 5.2 | 9 | M4 | 5.5 kgf | |
| D20 | Pot Cap Neodymium dia. 20 x 15mm / M4 Thread Female | 20 | 15 | 7.2 | 17 | M4 | 9 kgf | |
| D25 | Pot Cap Neodymium dia. 25 x 17mm / M5 Thread Female | 25 | 17 | 7.7 | 28 | M5 | 22 kgf | |
| D32 | Pot Cap Neodymium dia. 32 x 18mm / M6 Thread Female | 32 | 18 | 7.8 | 45 | M6 | 34 kgf | |
| D36 | Pot Cap Neodymium dia. 36 x 18.5mm / M6 Thread Female | 36 | 18.5 | 7.6 | 55 | M6 | 41 kgf | |
| D42 | Pot Cap Neodymium dia. 42 x 18.8mm / M6 Thread Female | 42 | 18.8 | 8.8 | 84 | M6 | 68 kgf | |
| D48 | Pot Cap Neodymium dia. 48 x 24mm / M8 Thread Female | 48 | 24 | 10.8 | 130 | M8 | 81 kgf | |
| D60 | Pot Cap Neodymium dia. 60 x 28mm / M8 Thread Female | 60 | 28 | 15 | 263 | M8 | 113 kgf | |
| D75 | Pot Cap Neodymium dia. 75 x 35mm / M10 Thread Female | 75 | 35 | 17.8 | 515 | M10 | 164 kgf | |
