Don’t see what you need? We can help.
Ask our experts about a custom magnet for your prototype, invention or specialty project.
We offer Magnetic Pot Magnet:Pot Magnet with External Threaded Stud / Boss Mounting, Pot Magnet with Internal Threaded Mounting (Deep Pot), Pot Magnet with Countersunk Mounting (Shallow Pot), Pot Magnet with Through Hole Mounting, Pot Magnet with Internal Threaded Stud / Boss Mounting, Pot Magnet with Threaded Through Hole Mounting.
Strong Neodymium Fishing Magnets
Our Best Selling Product!
TCM Magnetics designs the best and most effective fishing magnets available. Check out our wide range of pull strengths and sizes for every skill level. From our 359 lbs (163 kg) pull to our new cone shaped magnet, designed to reduce snags on underwater obstacles, we are sure to offer a fishing magnet for every skill level and need. For more information on any of the products below, please contact us.

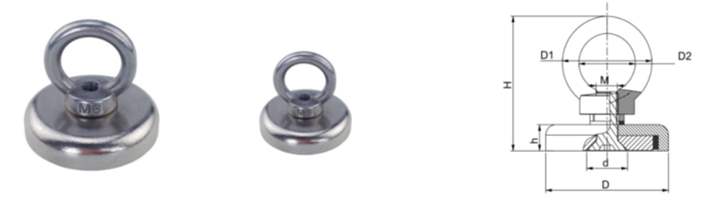

| Item No. | D | D1 | D2 | d | H | h | M | Weight | Pull Force |
|---|---|---|---|---|---|---|---|---|---|
| unit: mm | unit:gs | unit:kgs | |||||||
| Neo-J25 | 25 | 23 | 13.5 | 11 | 33 | 7.7 | 5 | 44 | 20 |
| Neo-J32 | 32 | 23 | 13.5 | 11 | 33.1 | 7.8 | 6 | 59 | 32 |
| Neo-J36 | 36 | 26.8 | 17 | 12 | 38.5 | 7.6 | 6 | 71 | 41 |
| Neo-J40 | 40 | 20.6 | 17 | 12 | 38.7 | 7.8 | 6 | 90 | 52 |
| Neo-J42 | 42 | 26.8 | 17 | 12 | 39.7 | 8.8 | 6 | 98 | 61 |
| Neo-J48 | 48 | 35.5 | 20.3 | 19 | 49.2 | 10.8 | 8 | 166 | 81 |
| Neo-J60 | 60 | 35.5 | 20.3 | 19 | 53.4 | 15 | 8 | 290 | 115 |
| Neo-J75 | 75 | 43.8 | 25.5 | 21 | 65.9 | 17.8 | 10 | 557 | 163 |
Related Products
Neodymium Pot Countersunk Magnets
Neodymium Pot Magnets are best for small sized magnetic products with maximum pull strength (ideally when in direct contact with ferromagnetic e.g. mi..
Neodymium Mounting Magnets with Straight Hole
Magnetic round base assemblies are made with neodymium magnets combined with steel cups. The magnets are magnetized together with the casings to cre..
Neodymium Pot Magnets - Threaded Eye Hook
Strong Rare Earth magnets in steel pot casing, with eyelet for safe mounting of objects. Our eyelet magnets neodymium come in different sizes and are ..
TCM Magnetic Provide the Following Services
Pot magnets are also known as round base magnets or round magnetic Bases & even cup magnets. They are made of permanent magnets assembled inside steel cups. Most of the pot magnets use either neodymium rare earth magnets or ceramic magnets. AlNiCo pot magnets can be found but SmCo magnet is rarely used. The benefits of the cup magnets are strength and durability. The holding strength of the round base magnets is much more powerful than the magnets built in the same round base magnets since the magnetic circuit design. The steel cups protect the magnets from direct hit so to have a much longer service life.
