Strong Neodymium Ring Magnets N35, N38, N42, N45, N50 & N52. Neodymium Ring Magnets are widely used in such applications as holding, motors, consumer electronics, medical, sensors and speakers. Due to the high magnetic strength of a Rare Earth Magnet, it has replaced other magnetic materials in order to make a design smaller but achieve the same result.
Sintered Neodymium Ring Magnet N35 OD225xID13x15mm
Sintered Neodymium Ring Magnet N35 OD225xID13x15
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

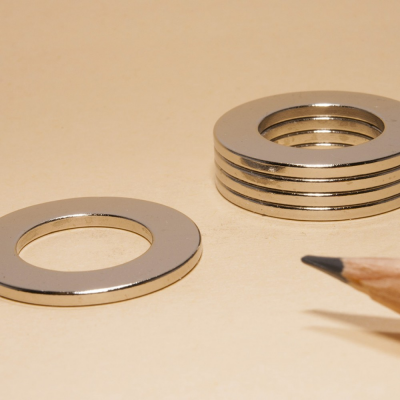

Rare earth magnets include neodymium magnets and Samarium-Cobalt magnets. The Sintered Neodymium Ring Magnet N35 OD225xID13x15 on the pictures are made from neodymium magnetic material. The dimension is OD22.5xID13x1.5mm, axially magnetized.
BUILD YOUR CUSTOM MAGNETS
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Ring
- Coating Ni-Cu-Ni
- Max temperature 80˚C (176˚F)
- Outer diameter (OD) 22.5 mm
- Inner diameter (ID) 13 mm
- Thickness (H) 1.5 mm
- Tolerance +/- 0.1mm
- Pulling Force ~ 2.30 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
