Strong Neodymium Ring Magnets N35, N38, N42, N45, N50 & N52. Neodymium Ring Magnets are widely used in such applications as holding, motors, consumer electronics, medical, sensors and speakers. Due to the high magnetic strength of a Rare Earth Magnet, it has replaced other magnetic materials in order to make a design smaller but achieve the same result.
Ring Shaped Neodymium Magnets N48 OD12xID6x4mm
Ring Shaped Neodymium Magnets N48 OD12xID6x4
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

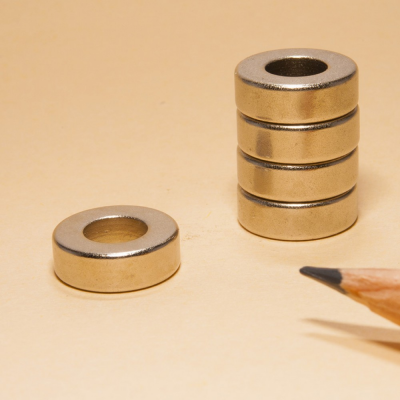

The Neodymium Ring Magnets on the pictures are measured OD12xID6x4mm, that belong to medium size for Neodymium Ring Magnets, which called strong neodymium rings. This strong neodymium rings are with high grade of N48.
BUILD YOUR CUSTOM MAGNETS
Request a quote today
Specifications
- MaterialNdFeB
- GradeN48
- ShapeRing
- CoatingNi-Cu-Ni
- Max temperature80˚C (176˚F)
- Outer diameter (OD)12 mm
- Inner diameter (ID)6 mm
- Thickness (H)4 mm
- Tolerance+/- 0.1mm
- Pulling Force~ 2.40 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
