Strong Neodymium Ring Magnets N35, N38, N42, N45, N50 & N52. Neodymium Ring Magnets are widely used in such applications as holding, motors, consumer electronics, medical, sensors and speakers. Due to the high magnetic strength of a Rare Earth Magnet, it has replaced other magnetic materials in order to make a design smaller but achieve the same result.
Ring Magnet Neodymium N52 OD20xID7x3mm
Ring Magnet Neodymium N52 OD20xID7x3
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature
Strong Rare Earth Magnets Neodymium N52 are stronger than N50, N48 and N42.

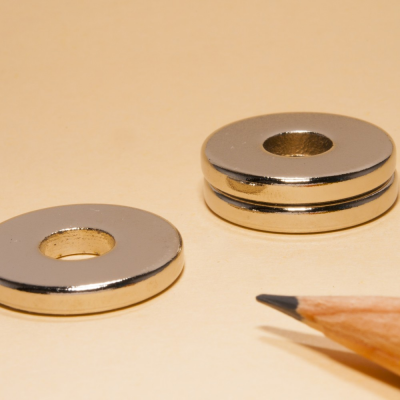

Neodymium rings are round shaped neodymium magnets with a hole in the center. Ring Magnet Neodymium N52 OD20xID7x3 is made by cutting from a neodymium tube magnets. We have different sizes for neodymium rings in stock, the size of the picture is OD20xID7x3mm which magnetized through thickness.
BUILD YOUR CUSTOM MAGNETS
Request a quote today
Specifications
- MaterialNdFeB
- GradeN52
- ShapeRing
- CoatingNi-Cu-Ni
- Max temperature80˚C (176˚F)
- Outer diameter (OD)20 mm
- Inner diameter (ID)7 mm
- Thickness (H)3 mm
- Tolerance+/- 0.1mm
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
