Strong Neodymium Ring Magnets N35, N38, N42, N45, N50 & N52. Neodymium Ring Magnets are widely used in such applications as holding, motors, consumer electronics, medical, sensors and speakers. Due to the high magnetic strength of a Rare Earth Magnet, it has replaced other magnetic materials in order to make a design smaller but achieve the same result.

Neodymium Magnet Ring N35 OD37xID32x2mm

Neodymium Magnet Ring N35 OD37xID32x2 - Neodymium Ring Magnets

Neodymium Magnet Ring N35 OD37xID32x2


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

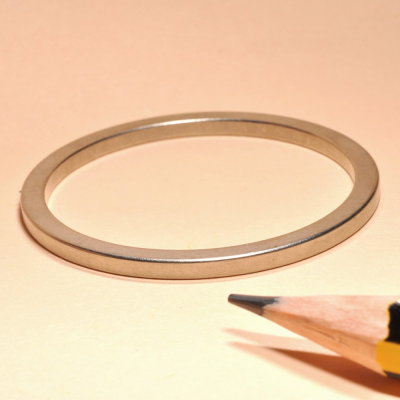

Neodymium rings are round shaped neodymium magnets with a hole in the center. Neodymium Magnet Ring N35 OD37xID32x2 is made by cutting from a neodymium tube magnets. We have different sizes for neodymium rings in stock, the size of the picture is OD37xID32x2mm which magnetized through thickness.

BUILD YOUR CUSTOM MAGNETS

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Ring
  • Coating Ni-Cu-Ni
  • Outer diameter (OD) 37 mm
  • Inner diameter (ID) 32 mm
  • Thickness (H) 2 mm
  • Tolerance +/- 0.1mm
  • Pulling Force 5.30 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
