We offer Magnetic Pot Magnet:Pot Magnet with External Threaded Stud / Boss Mounting, Pot Magnet with Internal Threaded Mounting (Deep Pot), Pot Magnet with Countersunk Mounting (Shallow Pot), Pot Magnet with Through Hole Mounting, Pot Magnet with Internal Threaded Stud / Boss Mounting, Pot Magnet with Threaded Through Hole Mounting.

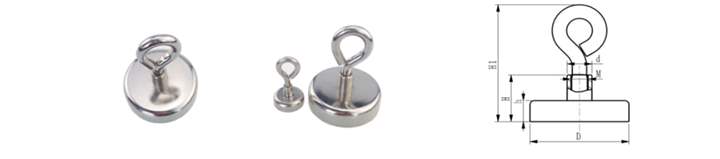

Neodymium Pot Magnets - Threaded Eye Hook
Our Best Selling Product!
Strong Rare Earth magnets in steel pot casing, with eyelet for safe mounting of objects. Our eyelet magnets neodymium come in different sizes and are great for attaching and suspending objects. These Neodymium Holding Pots are high strength Rare Earth magnets in a mild steel cap for extra protection against chipping or cracking. Eyelet can be removed.
| Item No. | D | D1 | M | h | H | H1 | Weight | Pull Force |
|---|---|---|---|---|---|---|---|---|
| unit: mm | unit: gs | unit: kgs | ||||||
| Neo-F16 | 16 | 6.5 | 4 | 5.2 | 13.5 | 35.7 | 12 | 5.5 |
| Neo-F20 | 20 | 6.5 | 4 | 7.2 | 15 | 37.8 | 21 | 9 |
| Neo-F25 | 25 | 7.5 | 5 | 7.7 | 17 | 44.9 | 33 | 22 |
| Neo-F32 | 32 | 10 | 6 | 7.8 | 18 | 74.8 | 54 | 34 |
| Neo-F36 | 36 | 10 | 6 | 7.6 | 18.5 | 49.8 | 64 | 41 |
| Neo-F40 | 40 | 10 | 6 | 7.9 | 18.8 | 50.1 | 87 | 51 |
| Neo-F42 | 42 | 10 | 6 | 8.8 | 18.8 | 50 | 93 | 68 |
| Neo-F48 | 48 | 12 | 8 | 10.8 | 24 | 61 | 150 | 81 |
| Neo-F60 | 60 | 12 | 8 | 15 | 28 | 66 | 283 | 113 |
| Neo-F75 | 75 | 17 | 10 | 10 | 35 | 17.8 | 515 | 164 |
Related Products
Neodymium Pot Countersunk Magnets
Neodymium Pot Magnets are best for small sized magnetic products with maximum pull strength (ideally when in direct contact with ferromagnetic e.g. mi..
Neodymium Pot Magnets - External Threaded Stud
Male threaded Rare Earth Holding Magnets are designed to be used with a washer and nut.Rare Earth Holding Magnets are high strength rare earth magnets..
Holding Power Neodymium Pot Magnets
Rare Earth Holding Magnets (Internal Thread) are perfect for screwing brackets into.Rare Earth Holding Magnets are high strength rare earth magnets in..
TCM Magnetic Provide the Following Services
Pot magnets are also known as round base magnets or round magnetic Bases & even cup magnets. They are made of permanent magnets assembled inside steel cups. Most of the pot magnets use either neodymium rare earth magnets or ceramic magnets. AlNiCo pot magnets can be found but SmCo magnet is rarely used. The benefits of the cup magnets are strength and durability. The holding strength of the round base magnets is much more powerful than the magnets built in the same round base magnets since the magnetic circuit design. The steel cups protect the magnets from direct hit so to have a much longer service life.
