Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Super Strong Disc Magnets N35 D6X5mm
Super Strong Disc Magnets N35 D6X5
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

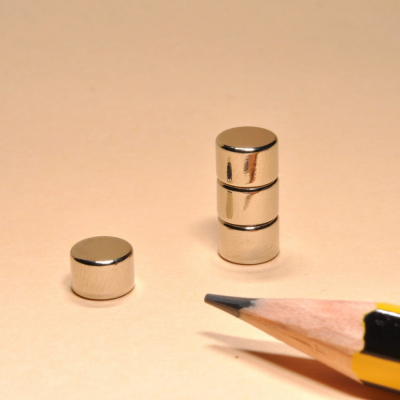

Neodymium Disc Magnets are important for any field, it inculde SmCo disc magnets, ceramic disc magnets and neo disc magnets. The Super Strong Disc Magnets N35 D6X5 on the picture are measured D6X5mm, and made from rare earth magnetic material, they have stronger magnetic force than the same size of smco disc magnets and ceramic disc magnets.
BUILD YOUR CUSTOM MAGNETS
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Disc
- Coating NiCuNi
- Max temperature 80˚C (176˚F)
- Diameter 6 mm
- Thickness (H) 5 mm
- Tolerance +/- 0.1mm
- Pulling Force ~ 1.00 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
