Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

Neodymium Magnets Disc N35 D10x1mm

Neodymium Magnets Disc N35 D10x1 - Neodymium Disc Magnets

Neodymium Magnets Disc N35 D10x1


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

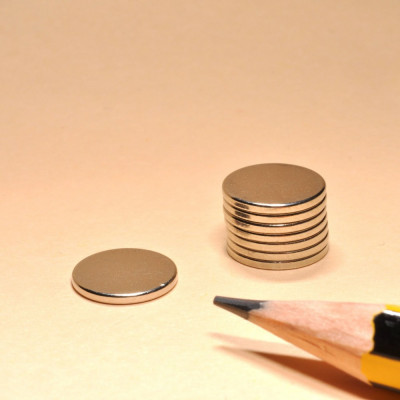

Neodymium Disc Magnets are important for any field, it inculde SmCo disc magnets, ceramic disc magnets and neo disc magnets. The Neodymium Magnets Disc N35 D10x1 on the picture are measured D10x1mm, and made from rare earth magnetic material, they have stronger magnetic force than the same size of smco disc magnets and ceramic disc magnets.

BUILD YOUR CUSTOM MAGNETS

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Disc
  • Coating Ni-Cu-Ni
  • Max temperature 80˚C (176˚F)
  • Diameter 10 mm
  • Thickness (H) 1 mm
  • Tolerance +/- 0.1mm
  • Pulling Force ~ 0.40 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
