Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

Disc Neodymium Magnets N35 D12x1.5mm

Disc Neodymium Magnets N35 D12x1.5 - Neodymium Disc Magnets

Disc Neodymium Magnets N35 D12x1.5


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

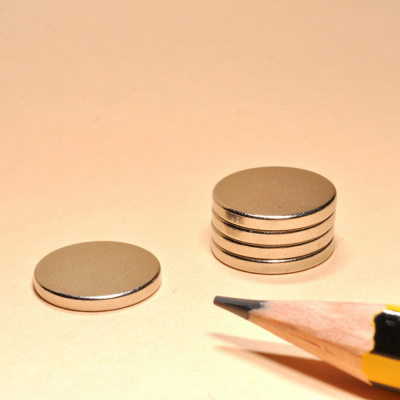

Neodymium Disc Magnets are important for any field, it inculde SmCo disc magnets, ceramic disc magnets and neo disc magnets. The Disc Neodymium Magnets N35 D12x1.5 on the picture are measured D12x1.5mm, and made from rare earth magnetic material, they have stronger magnetic force than the same size of smco disc magnets and ceramic disc magnets.

BUILD YOUR CUSTOM MAGNETS

Request a quote today

Specifications

  • MaterialNdFeB
  • GradeN35
  • ShapeDisc
  • CoatingNi-Cu-Ni
  • Max temperature80˚C (176˚F)
  • Diameter12 mm
  • Thickness (H)1.5 mm
  • Tolerance+/- 0.1mm
  • Pulling Force~ 0.75 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
