Neodymium countersunk magnet is special type of neodymium disc/block magnet with a hole fit for screw. We can provide neodymium countersunk magnets for various applications.
Countersunk Strong Disc Magnets N35
![Countersunk Strong Disc Magnets N35 - Neodymium Countersunk Magnets](https://www.r4ymagnetics.com/previews/85j81l.jpg)
Countersunk Strong Disc Magnets N35
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

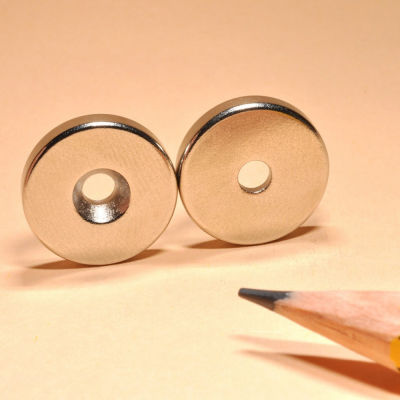

Countersunk Strong Disc Magnets N35 are used with screw, they are common in neodymium magnets. We can produce neodymium countersink magnets with high size precision. The Neodymium Countersunk Magnets on the picture is OD15 x3 mm, ID3.2 mm
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you2>
Request a quote today
Specifications
- MaterialNdFeB
- ShapeDisc with countersunk hole
- GradeN35
- CoatingNi-Cu-Ni
- Max temperature80˚C (176˚F)
- Diameter15 mm
- Thickness (H)3 mm
- Hole3.2 mm
- Tolerance+/- 0.1mm
- Pulling Force~ 2.70 kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
