Neodymium Block Magnets N35, N42, N45, N50 & N52 No matter how you call this category, strong bar magnets, bar magnets, magnetic blocks, magnet blocks or bar magnets, their basic geometric shape is a rectangle.

Rare Earth Neodymium Block Magnets N35 13X8X2mm

Rare Earth Neodymium Block Magnets N35 13X8X2 - Neodymium Block Magnets

Rare Earth Neodymium Block Magnets N35 13X8X2


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

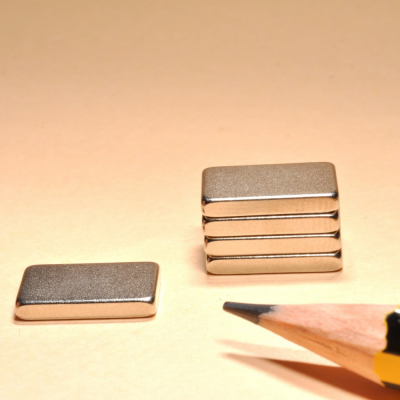

Neodymium Block Magnets The block magnets on the picture is made from neodymium magnet, the dimension of the square neodymium magnet is 13X8X2mm, grade_ N35, it is a common size for Neodymium Block Magnets, it can be used on magnetic separators. We have wide range of Neodymium Block Magnets, welcome to contact us for Rare Earth Neodymium Block Magnets N35 13X8X2.

BUILD YOUR CUSTOM MAGNETS

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Block
  • Coating Ni-Cu-Ni
  • Max temperature 80˚C (176˚F)
  • Length (A) 13 mm
  • Width (B) 8 mm
  • Thickness (H) 2 mm
  • Tolerance +/- 0.1mm
  • Pulling Force 1.10 kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
