Neodymium Block Magnets N35, N42, N45, N50 & N52 No matter how you call this category, strong bar magnets, bar magnets, magnetic blocks, magnet blocks or bar magnets, their basic geometric shape is a rectangle.

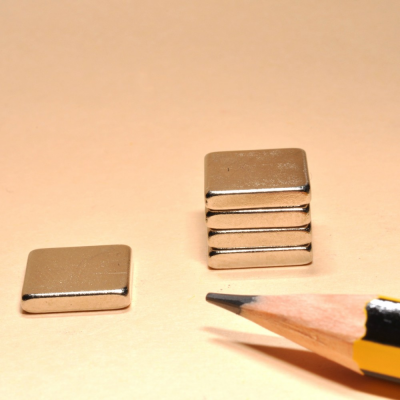

Bar Magnets Neodymium N35 10X10X2mm
Bar Magnets Neodymium N35 10X10X2
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature
we have wide size range of Neodymium Block Magnets. This Bar Magnets Neodymium N35 10X10X2 measured as 10X10X2, and magnetized through thickness. The grades of the Neodymium Block Magnets are made from N35-N52. The magnetic force of the Neodymium Block Magnets are super strong. It is almost standard sizes for magnets distributors. Welcome your inquiry of Neodymium Block Magnets.
BUILD YOUR CUSTOM MAGNETS
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Block
- Coating Ni-Cu-Ni
- Max temperature 80˚C (176˚F)
- Length (A) 10 mm
- Width (B) 10 mm
- Thickness (H) 2 mm
- Tolerance +/- 0.1mm
- Pulling Force ~ 1.20 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
